VALVE

Astute Alloys is appointed as the authorized distributor for KITZ valve. KITZ, established in 1951, today is the largest manufacturer of valves in Japan. KITZ manufactures a wide variety of industrial use and commercial valves. KITZ has devoted itself exclusively to the manufacture of valves and has built up an integrated production system that is the most efficient in the world. Also the company is appointed as the authorized distributor for SHORITSU Valve as well. SHORITSU is specialized in the forged valve since 1959 and well known for its expertise in oil, chemical, power industries and other fields. Furthermore, we could provide you other reliable brand such as OMB and many more.

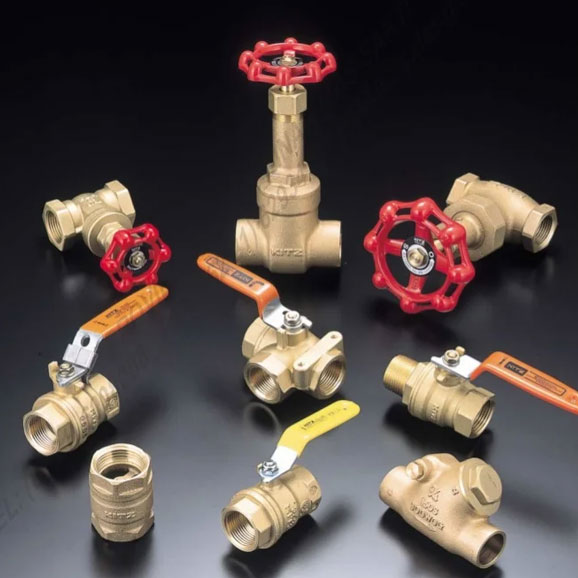

Bronze and Brass Valves


  • Material : Bronze and Brass Valves

  • Type : Gate, Globe, Check (Swing/Lift), Ball, Double Regulating Valve and Strainer

  • Pressure : BS PN 16,25, 32, 40 / ANSI Class 125, 150, 300 / JIS 5K,10K / Kitz type 100, 125, 150, 300, 400, 600

  • Size : 1/4" - 4"

  • Connection : Threaded, Solder, Flanged

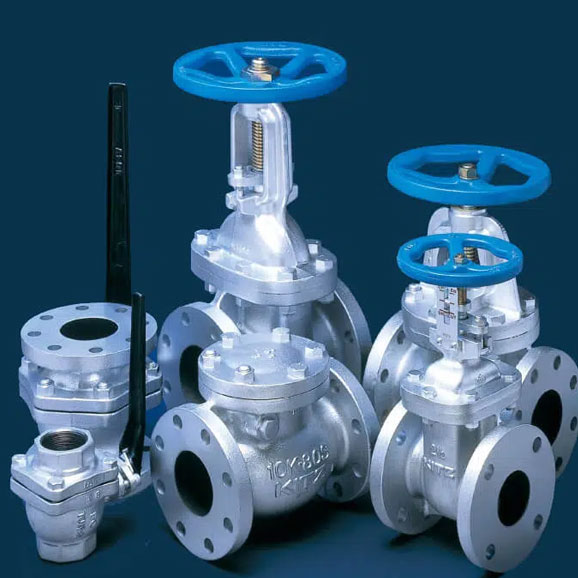

Cast Iron Valves (FC200, A126CL B.)


  • Material : Cast Iron Valves (FC200, A126CL B.)

  • Type : Gate, Globe, Check (Swing/Wafer/Ball), Ball, Double Regulating Valve and Strainer

  • Pressure : BS PN 16 / ANSI Class 125 / JIS 5K,10K

  • Size : 3/8" - 24"

  • Connection : Threaded, Flanged



Ductile Iron Valves (FCD-S)




  • Material : Ductile Iron Valves (FCD-S)

  • Type : Gate, Globe, Check (Swing/Wafer/Lift), Ball, Butterfly Valve and Strainer

  • Pressure : BS PN 16 / ANSI Class 125, 200, 250, 300 / JIS 10K, 16K, 20K

  • Size : 3/8" - 24"

  • Connection : Threaded, Flanged, Wafer and Lugged

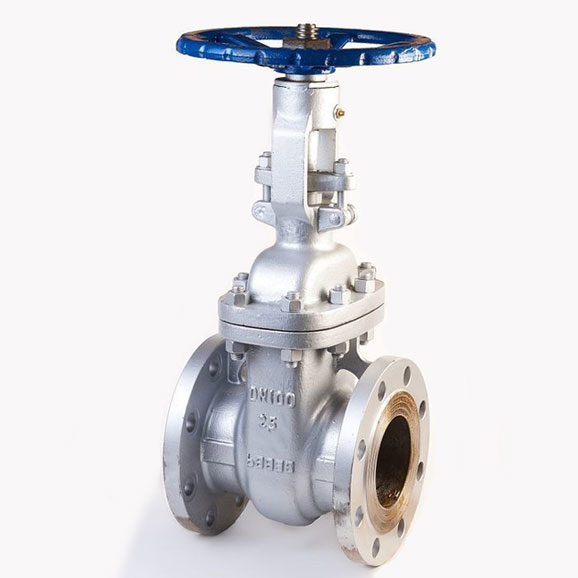

Carbon Steel Valve (A105/A216WCB)



  • Material : Carbon Steel Valve (A105/A216WCB)

  • Type : Gate, Globe, Check, Ball (Floating&Trunnion) Valve and Strainer

  • Pressure : ANSI Class 150, 300, 600, 800, 900, 1500, 3000 / JIS 10K, 20K

  • Size : 1/4" - 48"

  • Connection : Threaded, Welded and Flanged


Carbon Steel Valve (A352LCC ) Low Temperature NACE MR0175



  • Material : Carbon Steel Valve (A352LCC ) Low Temperature NACE MR0175

  • Type : Gate Valve, Trim SS316 + FHF

  • Pressure : ANSI Class 150, 300

  • Size : 2" - 18"

  • Operator : Lever and Gear

  • Connection : Flanged



Stainless Steel Valve (SCS13A, SCS14A,CF8, CF8M)&High Alloy Steel Valves


  • Material : Stainless Steel Valve (SCS13A, SCS14A,CF8, CF8M) & High Alloy Steel Valves

  • Type : Gate, Globe, Check (Swing/Lift/Ball), Ball (Floating&Trunnion) V-Port, Butterfly Valve, Strainer

  • Pressure : ANSI Class 150, 300, 600, 800, 900, 1000, 1500, 3000 / JIS 10K, 20K

  • Size : 1/4" - 28"

  • Connection : Threaded, Welded and Flanged

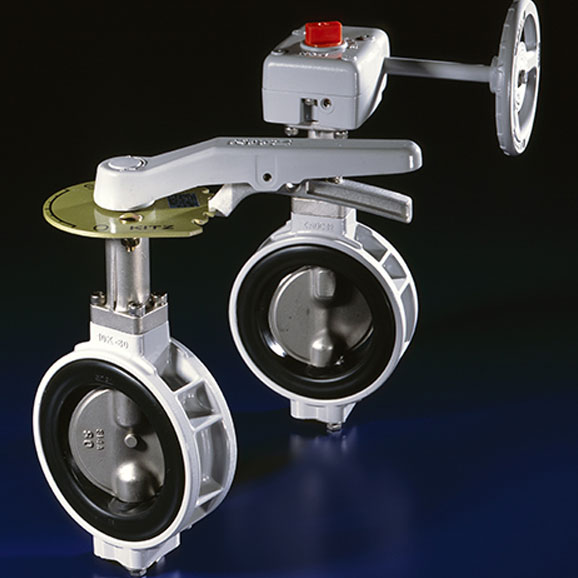

Butterfly Valve Aluminum




  • Material : Butterfly Valve Aluminum

  • Pressure : BS PN16 / JIS 10K

  • Size : 1 1/2" - 12"

  • Connection : Wafer

  • Operator : Lever Handle, Gear, Pneumatic and Electric Actuator

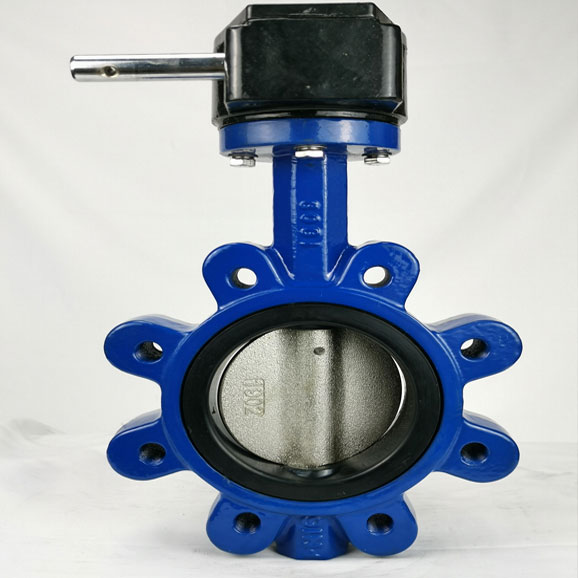

Butterfly Valve Ductile Iron



  • Material : Butterfly Valve Ductile Iron

  • Pressure : BS PN16, PN25 / ASME Class 150,200, 250 / JIS 10K

  • Size : 1 1/2" - 24"

  • Connection : Wafer/Lugged

  • Operator : Lever Handle, Gear, Pneumatic and Electric Actuator

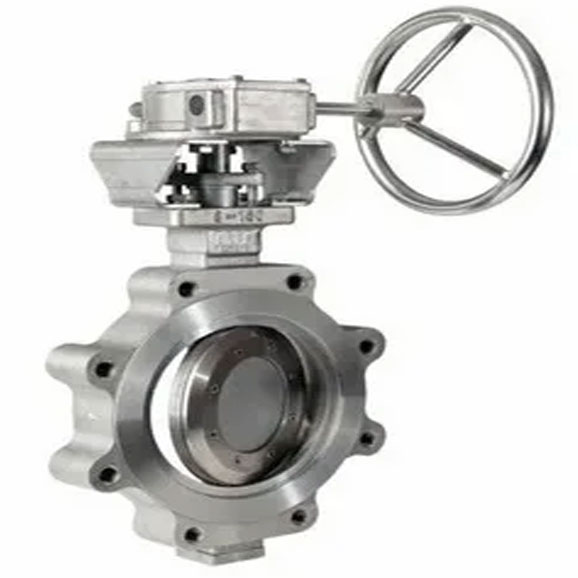

Butterfly Valve Stainless Steel



  • Material : Butterfly Valve Stainless Steel

  • Pressure : JIS 10K, 16K / ASME Class 150

  • Size : 2" - 24"

  • Connection : Wafer

  • Operator : Lever Handle, Gear, Pneumatic and Electric Actuator



OMB Valve


  • Type :Gate, Globe, Check

  • Material : Forged steel (Trim5 and Trim8), Stainless steel (Body&Bonnet A182-F304 HF, A182F316)

  • Connection : SW, NPT, FLANGE END

  • Pressure : 150P 300P 800P

  • Size : 1/2" - 2"

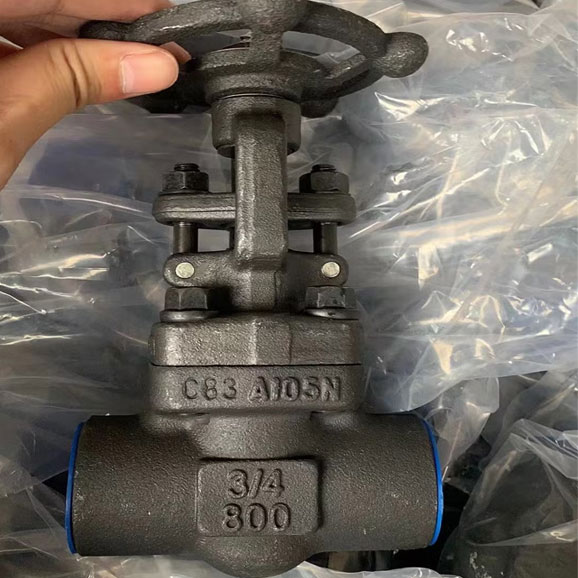

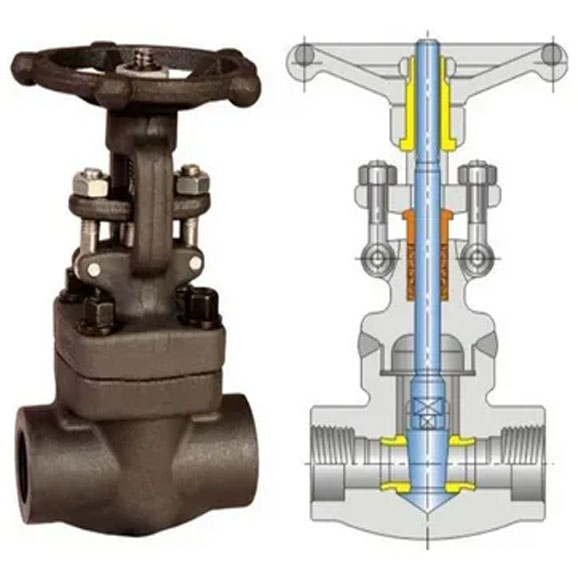

SHORITSU Valve




  • Type :>Gate, Globe, Check

  • Material : Carbon Body: A105N (Trim5 and Trim8

  • Material : Stainless Body&Bonnet: A182-F304, A182F316, A350-LF2, A105 (TrimA276-304, A276-316), Alloy

  • Pressure : 150 300 800

  • Size : ¼" - 2" Connection SW, NPT, FLANGE END
